A personal datacenter,
run like production

Three Proxmox nodes, sixty-plus services, one operator. Everything behind single sign-on, everything in git, everything monitored — because the discipline is the hobby.

3

Proxmox nodes

60+

Services

240TB

Raw · 120 mirrored

384GB

RAM, lab-wide

10GbE

Core network

100%

Behind SSO

The cluster

Topology

internetbusiness-class fiber ONT · static IPs

routerpfSense CE, virtualized on ESXi

coreL3 managed SFP+ 10 GbE switch

pmx1128 GB RAM · 16 Intel Xeon cores · 2× 2 TB gen-4 NVMe

pmx2128 GB RAM · 16 Intel Xeon cores · 2× 1 TB gen-4 NVMe

pmxnas16 GB RAM · 8 AMD cores · 2× 256 GB gen-4 NVMe

the clusterother non-Proxmox nodes host further services like Nextcloud and Home Assistant — soon to be converted into additional pmx nodes

The stack

Sixty services, six layers

EDGE & IDENTITY

Nginx Proxy ManagerTLS · every public name

PowerDNSauthoritative DNS, 25+ zones

AuthentikSSO/OIDC on everything

pfSenserouting · VLANs · firewall

AI & COMPUTE

Ollamalocal models on the lab GPUs

Open WebUIthe chat front end

Whisper / Piperspeech to text, text to speech

Jupyternotebooks against local compute

the perimeterrouting, DNS, TLS and single sign-on in front of everything; no service has its own password door

the intelligencefifteen local models, 2–14B parameters, chat, vision and coding — plus Whisper and Piper for speech in and out — serving lab services and Open WebUI chat

PLATFORM

Giteaevery repo, incl. this site

TeamCityCI, config as Kotlin DSL

ProGetprivate package feeds

SQL Serverapp databases

RabbitMQmessage bus

LIFE

Immichphotos, GPU-accelerated ML

Home Assistantthe apartment, automated

Triliumnotes + a custom task cockpit

Trektravel planning, self-hosted

Dawarichlocation history, kept at home

the factoryGitea for source control, TeamCity running CI with versioned Kotlin DSL build configs; ProGet hosts private NuGet and Docker feeds, SQL Server, RabbitMQ providing message bus and MQTT services

the householdphotos with GPU-based ML image recognition, backing up device photos to a web gallery; Home Assistant for home automation; advanced programmable notes via Trilium; Trek vacation planning; and self-hosted location timelines

MEDIA & COMMS

Plexthe cinema

MusicManagerthe collection, custom-built

AAITVlive TV, custom-built

Calibre-Web Automatedthe library, auto-ingested

RomMthe arcade

MiroTalkvideo calls off the cloud

OBSERVABILITY & OPS

Umamianalytics (watching you now)

Scrutinydisk health, before it hurts

Guacamoleremote consoles in a tab

Nextermserver management in a tab

Scanopynetwork discovery & recon

Kopiabackups, verified and versioned

the cinemaPlex serves movies and live TV with GPU transcoding; a custom-managed lossless music collection reaches Sonos, web and device via Subsonic, controllable by Alexa; digital bookshelves with send-to-device, an expansive arcade, and local video conferencing

on guardself-hosted analytics on the public sites, SMART telemetry from every disk, verified and deduped backups, the whole network discovered and recon’d, any server’s console or SSH session one browser tab away, and intrusion detection

The front door

Every service, one sign-on

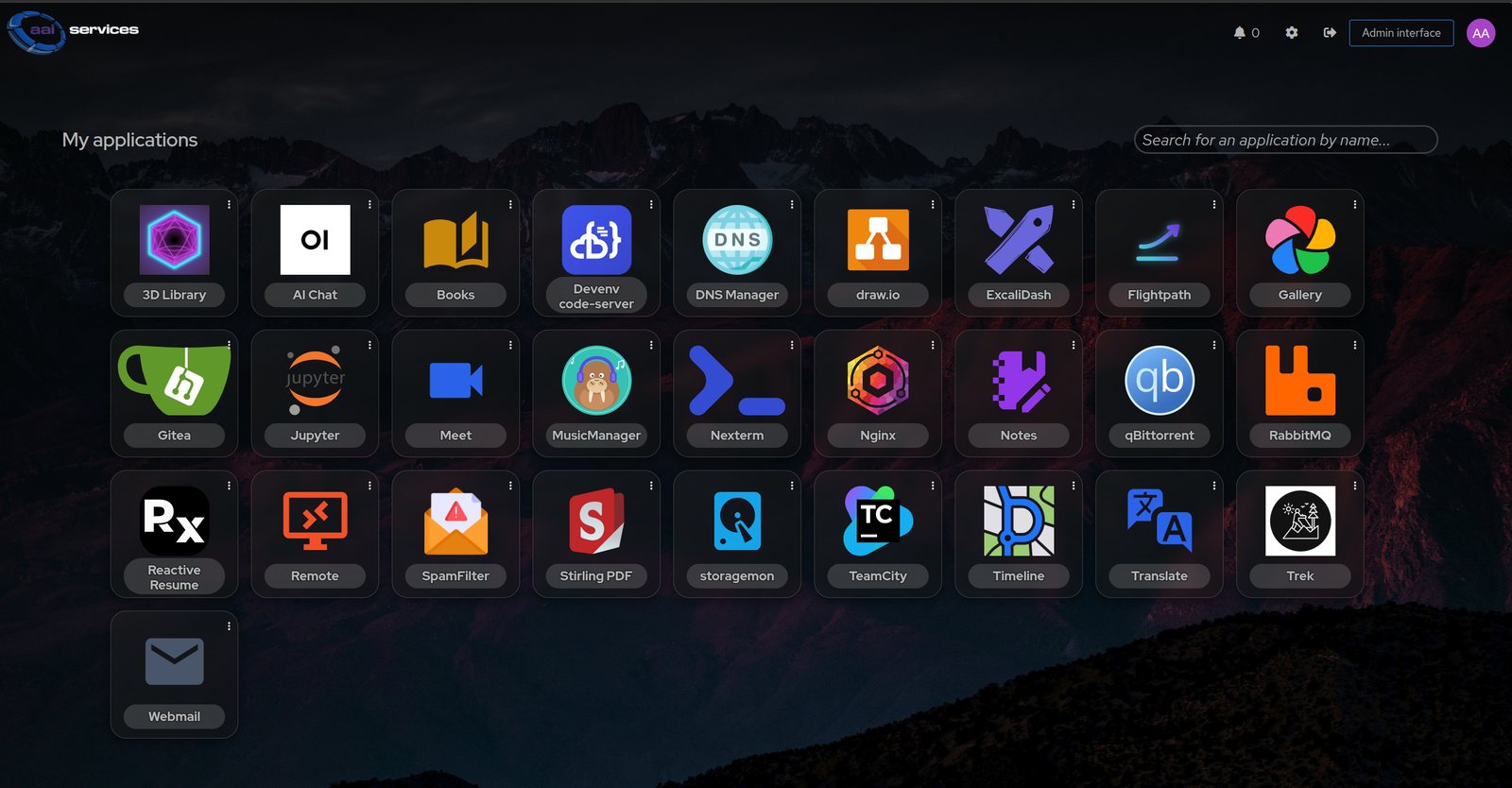

The Authentik application catalog: a grid of every homelab service as app tiles

AUTH.AAISERV.COM

the Authentik application catalog — one identity in front of everything; nothing in the lab has its own password door

Built, not installed

Running services is a hobby, building them is my job

SpamFiltera self-trained spam model over the family mail: 3,675 messages, 85.7% spam, 1.86 ms average inference

storagemon120 TB tracked across four hosts: live I/O, volume history, disk-level health

MusicManagerthe lossless collection under custom management: 1,538 artists, 13,840 songs, 336 GB on disk

AAITVlive broadcast TV off the tuners: two-up viewing, a 108-channel guide, picture-in-picture

flightpathpipeline orchestration with per-step logs and resource telemetry · in development

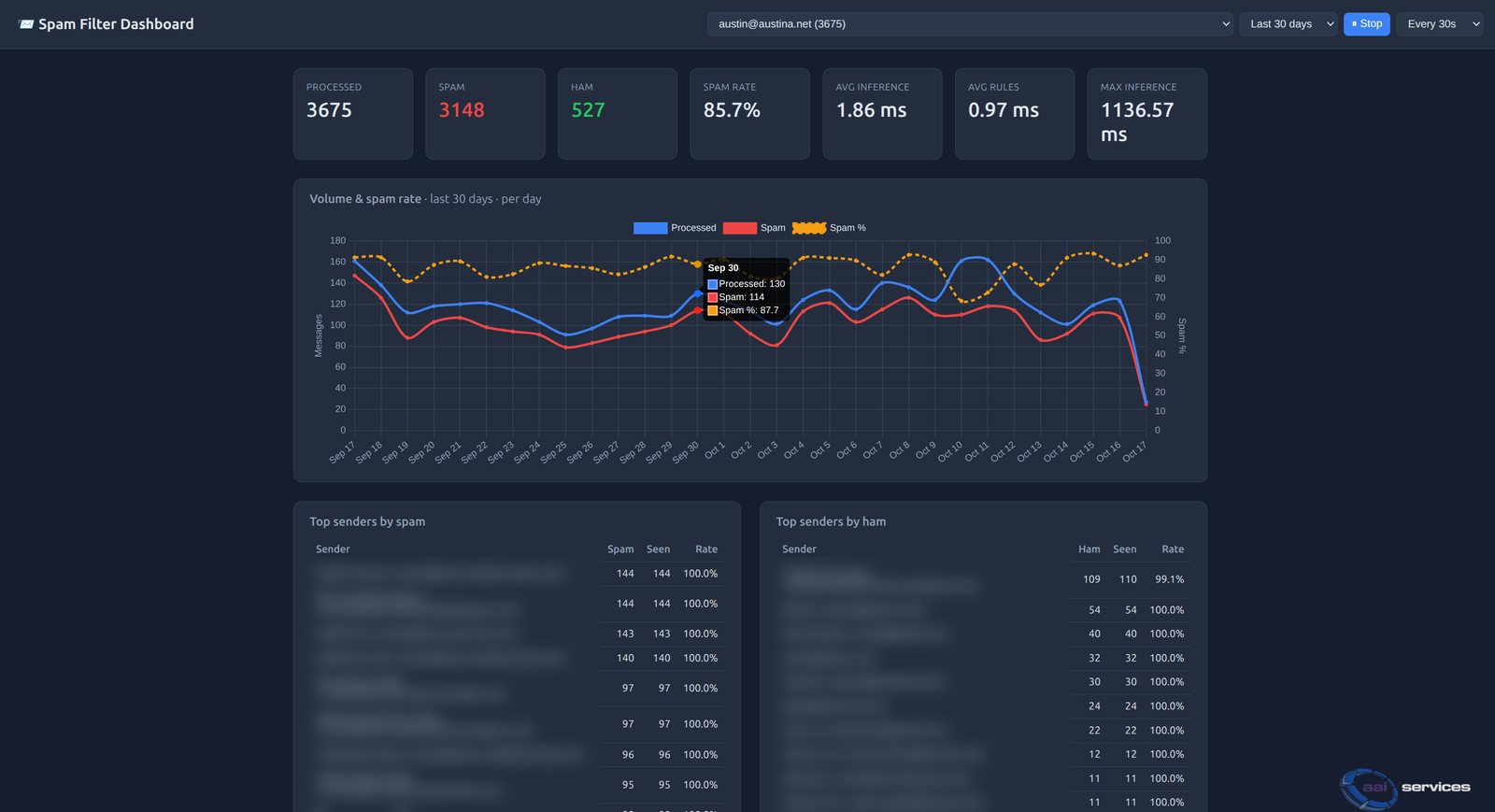

SpamFilter dashboard: volume and spam-rate chart with inference statistics — SpamFiltera self-trained spam model over the family mail: 3,675 messages, 85.7% spam, 1.86 ms average inference

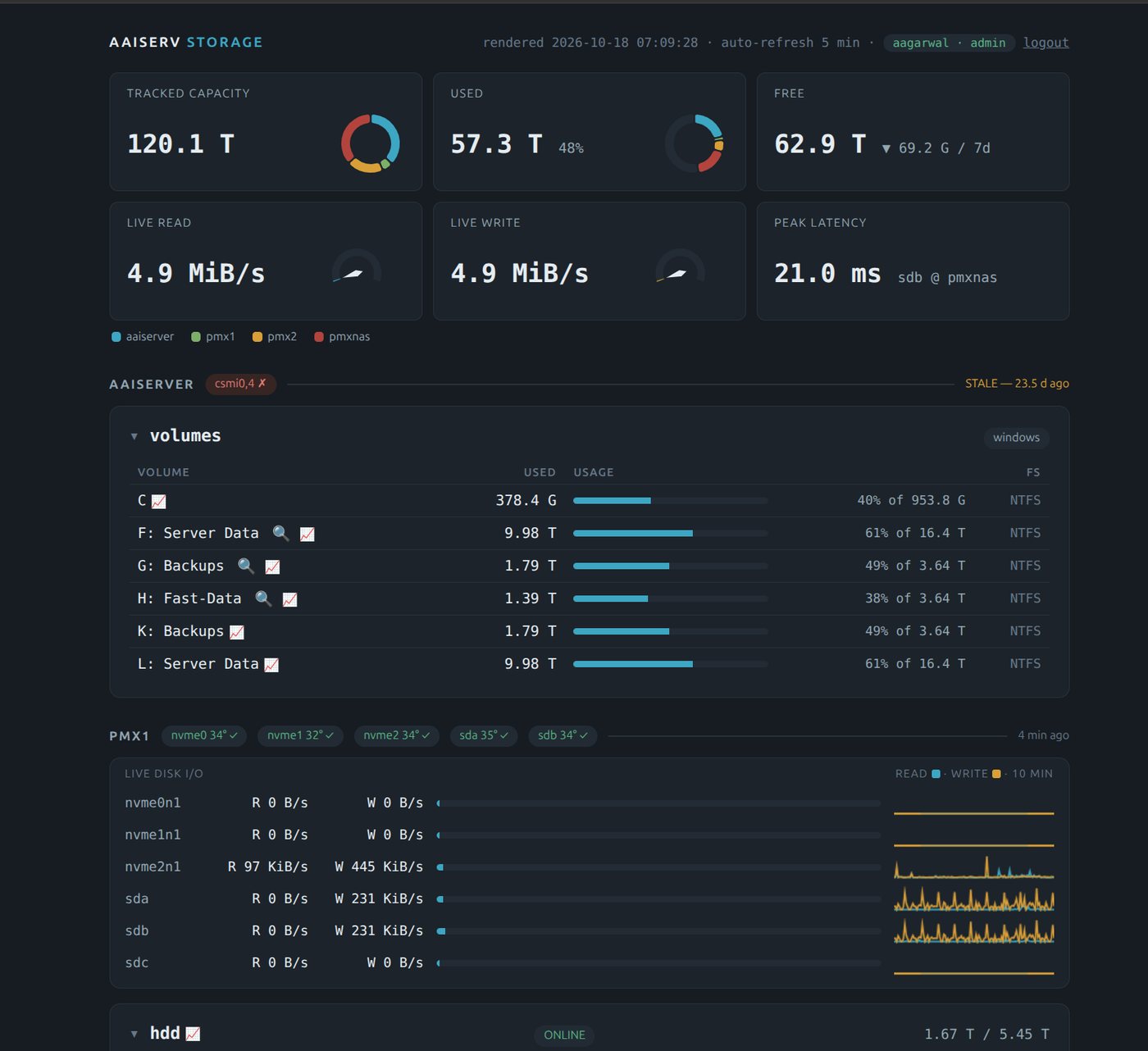

storagemon dashboard: tracked capacity, live I/O and volume health across hosts — storagemon120 TB tracked across four hosts: live I/O, volume history, disk-level health

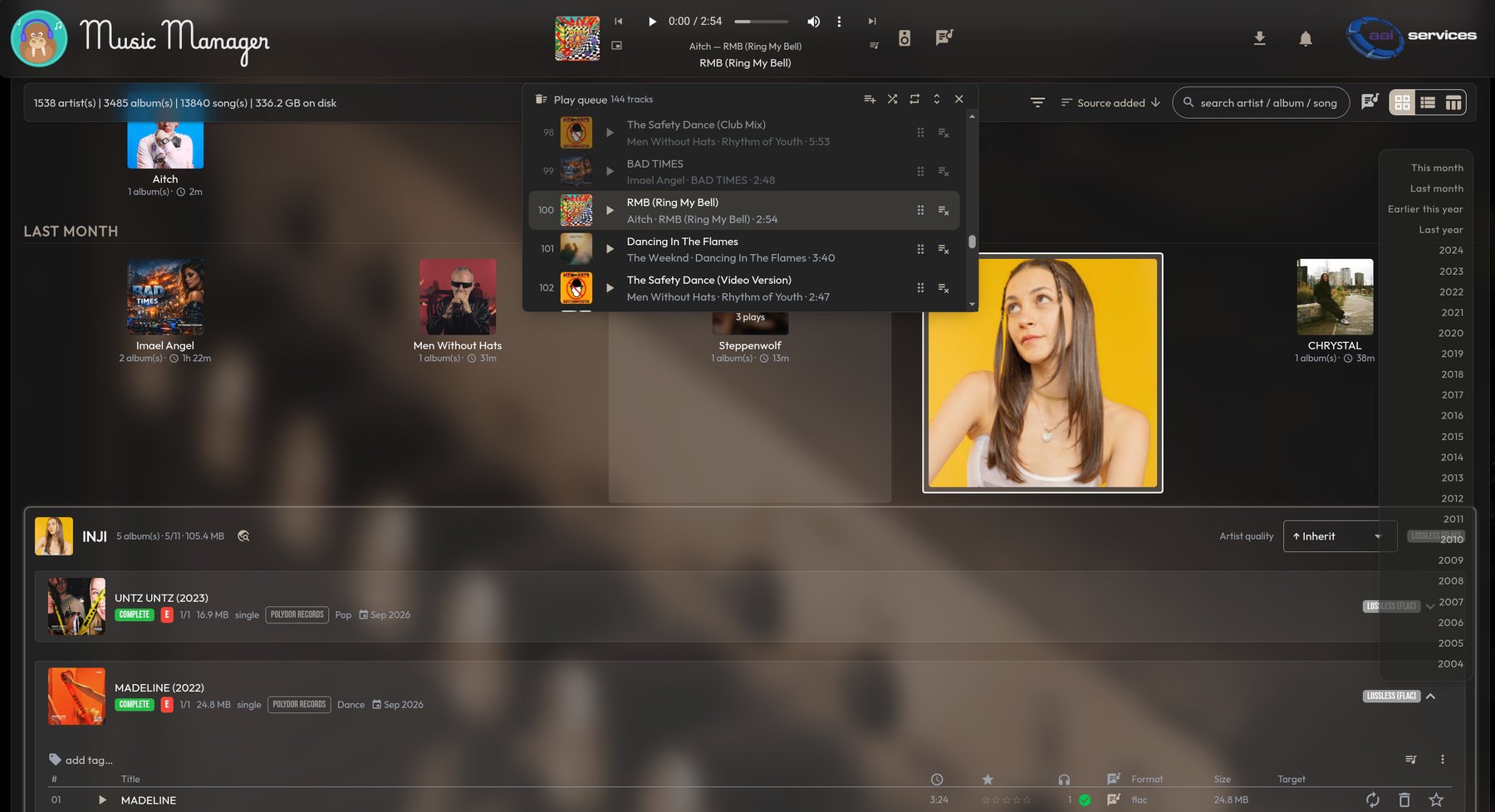

MusicManager: dark library dashboard with artist tiles, play queue and lossless badges — MusicManagerthe lossless collection under custom management: 1,538 artists, 13,840 songs, 336 GB on disk

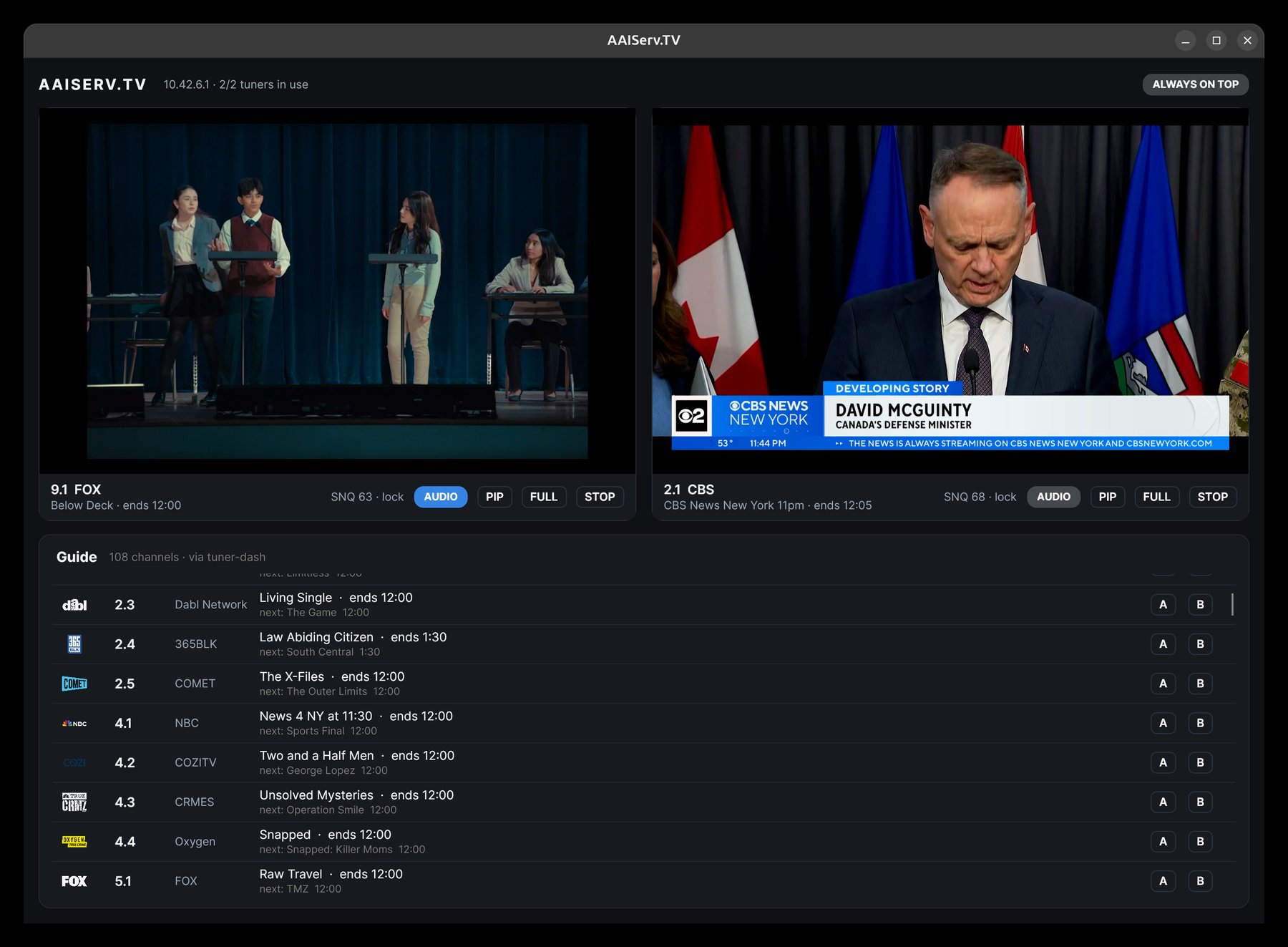

AAIServ.TV: two live broadcast streams side by side above a 108-channel guide — AAITVlive broadcast TV off the tuners: two-up viewing, a 108-channel guide, picture-in-picture

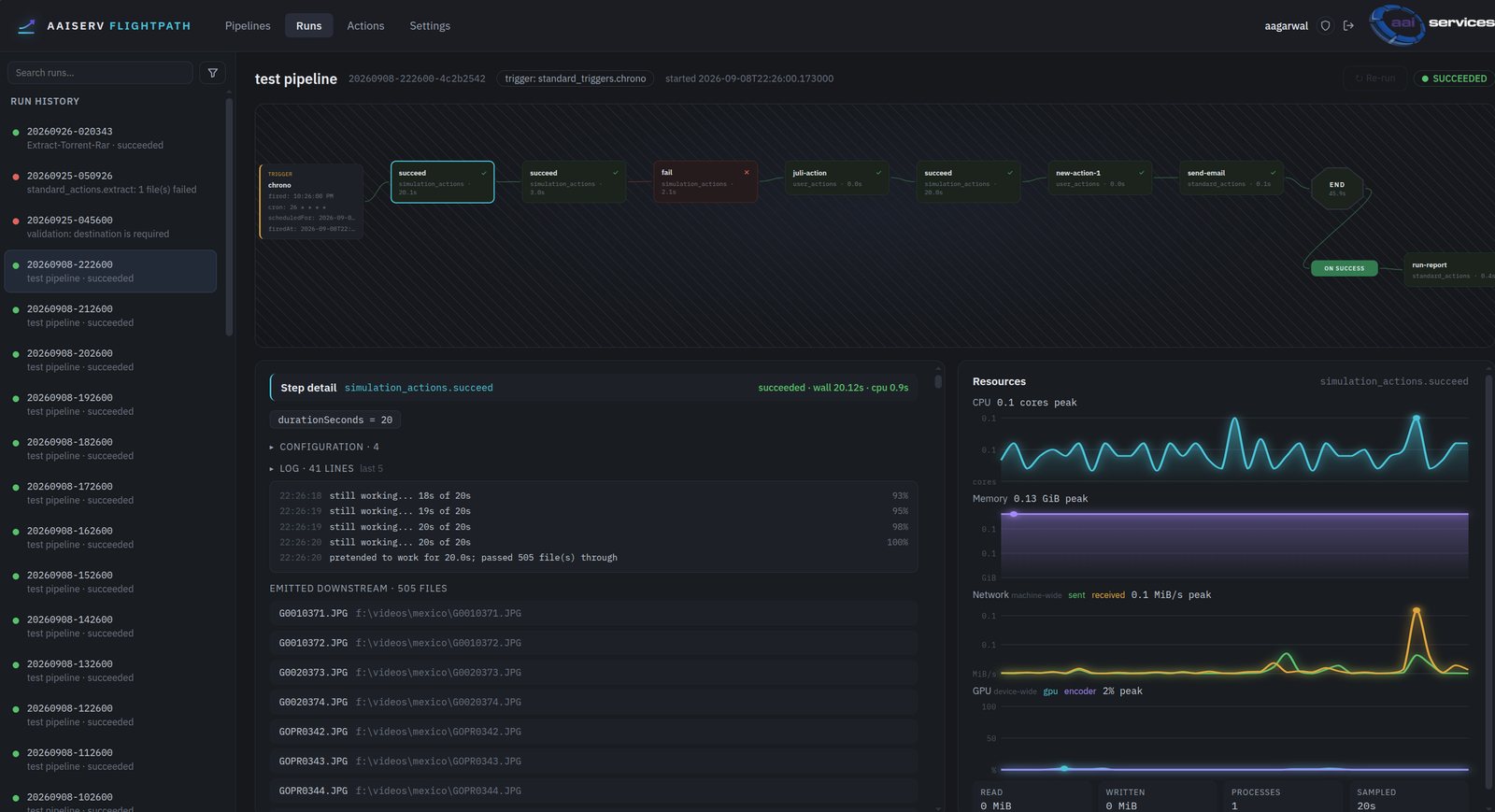

flightpath: a pipeline run DAG with step detail and resource telemetry — flightpathpipeline orchestration with per-step logs and resource telemetry · in development

The workshop

devenv — where the work happens

TOOLING

herdrterminal sessions from any device

code-serverVS Code in a browser tab

klausgit patch viewer

JetBrains remoteRider, headless

rtl_tcpSDR stream server — radio experiments

TOOLCHAINS

.NET 9 · C/C++ · Python · nodethe core chains, uv-managed Python

Dockercontainers without sudo

PlatformIOembedded builds for the IoT repos

Datasetteany SQLite file, browsable in a tab

other dev toolsask-cli, ffmpeg-fdk (libfdk_aac), adb

the full toolchain lives on the box — .NET 9, C/C++, Python and node; Rider and VS Code run headless, diffs read in klaus, sessions picked up in herdr from any device. provisioned by one re-runnable script, like everything else in the lab.

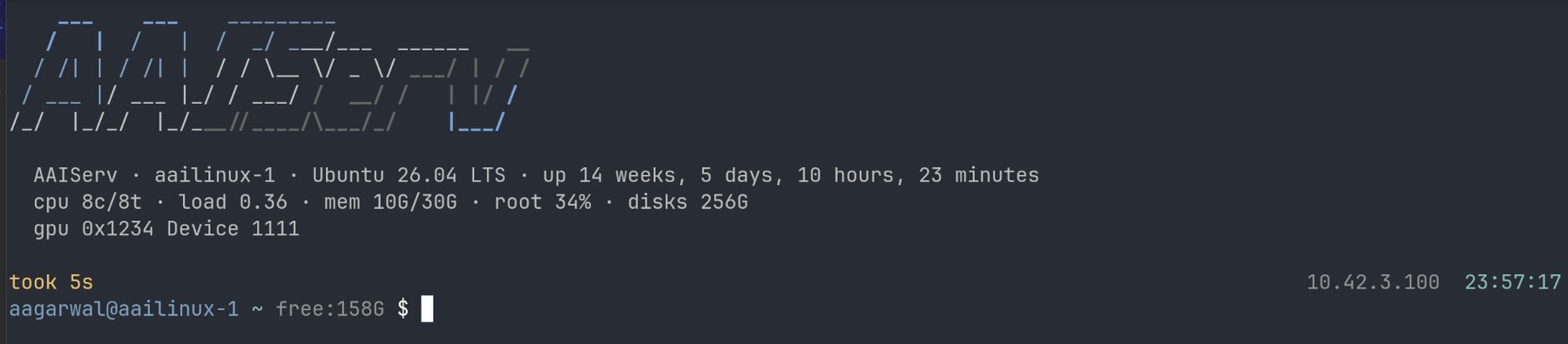

The devenv login banner: AAIServ ASCII art, host and resource summary, shell prompt

The discipline

"Run like production" is not a metaphor

→ One identity provider; no service has its own password door.

→ Every config change lands in git with a reasoned commit message.

→ Public TLS on real domains — no self-signed warnings, ever.

→ Disk health, backups and uptime watched by machines, not vibes.

→ Every IP has reverse DNS — PTR records on the lab’s own domain.

→ New services get provisioned, documented and monitored — or they don't ship.

# a quiet Saturday, somewhere in the cluster

austin@devenv:~$ ssh pmx1 pvecm status | grep -E "Nodes|Quorate"

Nodes: 3

Quorate: Yes

austin@devenv:~$ ▍
